Knotting Machines From Jaytex

(We are the ONLY agents of Jaytex)



Warp Leasing- In Machine

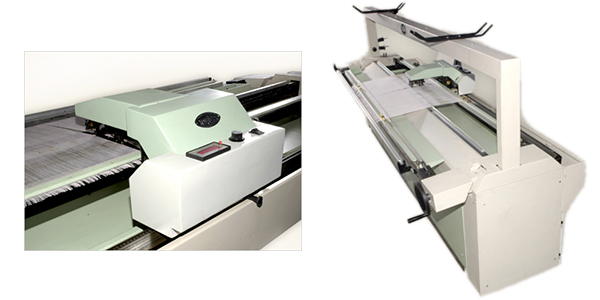

Warp Leasing- In Knotting Machine

One of the most important stages in the preparation of warps for weaving is the insertion of the lease. A lease is needed to be able to separate the individual threads in a warp sheet from one another, or to precisely define the thread sequence. This process establishes the warp ends in the sequence prescribed by the warper or beamer. It is especially important to have the correct sequence in densely set of patterned warps, as well as in warps containing fine yarns, such as synthetics, filament or worsted yarns. By using Jaytex universal warp Leasing-In machine the preparatory process in your weaving will become highly rationalized, all type of sized warps can be automatically and correctly leased at a high speed. Leasing each and every warp end means arresting them in their original position, and not allowing them to migrate. With a perfect 1 :1 lease in the warp, the subsequent processes such as automatic drawing –in becomes more reliable, simpler & faster.

It Helps

  • Consequently it improves.
  • Even tensioning to each warp over the entire width.
  • Reduction in fluffiness in the warps.
  • Reduces end breakages during weaving.
  • Frequent loom stoppage is reduced.
  • Improves the quality of woven products.
  • Rationalizing the preparatory process.
  • Fully Automatic. The machine can be left alone during operation.

A must for high speed and jet looms. A boon to the filament single and sizers and weavers. High productivity at low labor cost.

Models For Warp Leasing-In Machine

Fully automatic Jaytex AFM 2 Model Warp Leasing-In-Machine’s selector carriage is now with new features, advancing movement of the same is in co-ordination with the density of the warps. The unique gear assembly, with sensitive advance feeler makes it possible. The selector carriage moves on the toothed rack exactly as per the spacing of the yarn, to enable the selector needle pick-up only one thread at one time. Also second knock off selector is provided to prevent double thread leasing. Available in various sizes as per your weavers beam.



We also supply all types of spare parts for Warp Leasing-In Machine on advance order.
