Electronic Jacquard
Easy adaption and versatile User-friendly, minimal maintenance
FIELD OF APPLICATIONS
Be widely used in weaving of trademarks, tie, towels, table, clothing and other jacquard fabrics.
SUITABLE LOOMS
With matured and adjustable shed design, to be workable with many types of imported high speed looms, such as: K88, NISSAN, PICANOL, SMIT, SOMET, SULZER, TOYOTA, VAMATEX and so on. Also can be matched with rapier looms, water-jet looms, air-jet looms and reconstructed second-hand looms.
TECHNICAL PARAMETER
| ITEMS | ELECTRONIC JACQUARD MACHINE | ||
|---|---|---|---|
| Series | EHS Series | E Series | EC Series |
| Transmission Type | Vertical-shaft | Vertical-shaft | Chain |
| Rotate Speed | 300-600 RPM | 200-300 RPM | ≤ 200 RPM |
| Shedding Form | Double-lift clear open-shed | ||
| Shedding Height | Front shed 55-90mm, back shed 90-110mm, easily adjustable | ||
| Format | 1344-hook, 2688-hook, 5376-hook, 6144-hook, 7488-hook, 8256-hook | ||
| Application Loom | Kinds of shuttle & shuttle-less looms such as rapier, projectile, water jet, air jet looms | ||
Grounding Resistance: < 5 Ω
Working Temperature: -5°C ~ +40°C
Working Humidity: < 85%
DIMENSIONS
| Item No. | Format | Weight (kg) | Dimension (mm) | ||||
|---|---|---|---|---|---|---|---|
| EHS Series | E Series | EC Series | L | W | H | ||
| E1344hs | E1344 | E1344c | 1344-hook | 1000 | 1900 | 900 | 1150 |
| E2688hs | E2688 | E2688c | 2688-hook | 1300 | 2350 | 900 | 1150 |
| E5376hs | E5376 | E5376c | 5376-hook | 1800 | 2670 | 1200 | 1170 |
| E6144hs | E6144 | E6144c | 6144-hook | 2000 | 2890 | 1200 | 1170 |
| E7488hs | E7488 | E7488c | 7488-hook | 2200 | 3240 | 1200 | 1170 |
| E8256hs | E8256 | E8256c | 8256-hook | 2400 | 3422 | 1200 | 1170 |
 |
 |

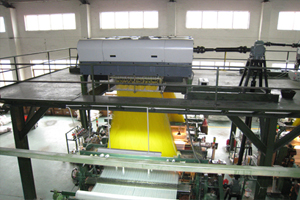

Electronic Jacquard 01 |
|
 |
|

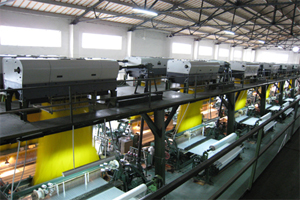

Electronic Jacquard 03 |

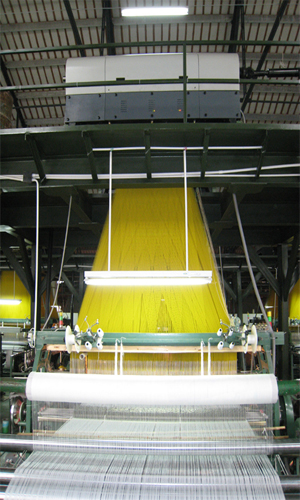

Electronic Jacquard 02 |
We also supply all types of spare parts for Electronic Jacquard on advance order.
