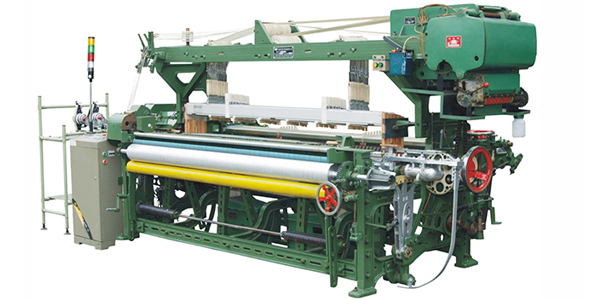

Crank Rapier Loom
220 RPM
It is used to weave crude fiber, chemical fiber and blending yarn etc.
Type
Plain, Dobby and Jacquard
Feature
It has 6 colors weft seleginction, exchang color per weft . Its speed increases very much than the shuttle loom, this type loom can evidently improve unit area output and fabric quality. Also its suitability is wide.
Technical Parameter
PARTICULARS | MAIN SPECIFICATION |
---|---|
Reed width(cm) | 160 180 200 230 250 280 300 320 340 |
Speed (R.P.M) | 210-130 |
Weft selection | 6 Colors |
Yarn count | Cotton 7-60Ne Wool 12-100Nm Chemical fabric 100-650D |
Dia.of warp beam (mm) | F600 |
Dia.of rolling-up (mm) | F400 |
Heddle frame | 14 pcs for Dobby |
Insertion rate(m/min) | 300-400 |
Motor power(kw) | 1.5 |
Weight(kg) | 1700-2200 |
Overall size(mm) | 5400x1827x2120mm (330cm) |

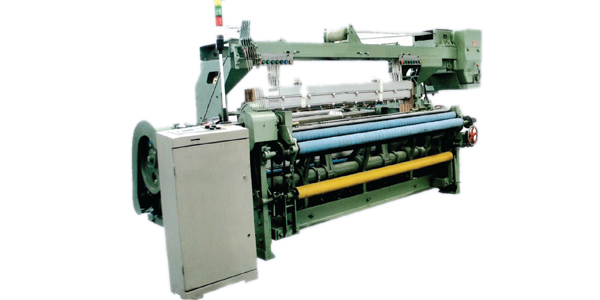

240 RPM
It has positive dobby and six colour electronic, mechanical weft selecting device. The filling operation adopts the optimized propulsion system of combing six crank filling operation motion and four crank beating - up motion. Rapier gripper can be adjusted freely. The Time of rapier gripper in and outside can be adjusted conveniently. It has good advantages as follows: small beating area, strong beating power, and little end - breakage. It has remarkable advantages as follows: simple framework, strong reliability, beautiful shapes, easy maintenance and high cost - effective. It is suitable for density and heavy fabric.
Technical Parameter
PARTICULARS | MAIN SPECIFICATION | ||||||
---|---|---|---|---|---|---|---|
(Min) Nominal Reel Width | 2000 | 2300 | 2600 | 2800 | 3000 | 3300 | 3600 |
(r/min) Speed | 200-240 | 190-230 | 170-200 | 170-200 | 160-190 | 150- 180 | 190- 170 |
Electric Machinery | 1.5KW | ||||||
Open Device | Positive Mechanical Dobby, Jacquard Organization | ||||||
Beating Up | Four Line Lever Beating - Up Mechanism | ||||||
Run-in-Wrap | Positive Continuous Mechanical Wrap Left-off, Wrap Beam Plate Dia: 600 | ||||||
Roll-Up | Positive Continuous, Take-Up, Weft Count Range 8-50cm, Maximum Batching Dia: 450mm | ||||||
Wrap Stop Motions | Six Flows Electric Device | ||||||
Colour Selecting | Electron or Mechanism Control, Self-Shade, Filling Mixed or 8 Colour Weft Selecting | ||||||
Electric Control | Advance MicroComputer Control | ||||||
Lubricate | Puton Steam With Manual Oil-Pump Collection To The Parts Which Need Lubricate |

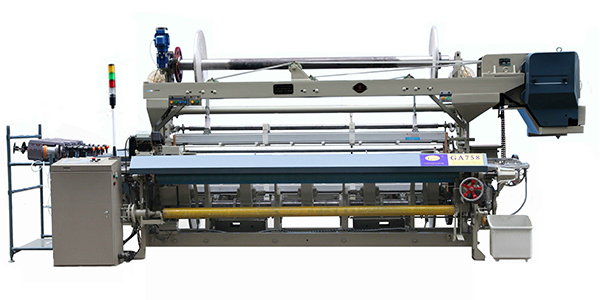

280 RPM
Technical Parameter
PARTICULARS | MAIN SPECIFICATION |
---|---|
WIDTH | 230cms |
TPYE | "20 shaft CLOSE TYPE HEQUN mechanical dobby" |
Motor | 1.8KW |
selector | 6 color mechanical selector |
feeder | 2 big 1 small |
cloth roller | 2 PCS |
gripper,rapier belt | 2 SETS |
Dropper | 10000PCS(0.2MM*165MM) |
Beam | 2 SETS |
Heald wire | 10000PCS |
Frames | 16 PCS |
Beam plate | 680MM |
Control box | XINCANG LCD |
FREE PARTS WITH 8 SETS MACHINES
DRAWING CODE | ITEM | UNIT | QTY |
---|---|---|---|
o309 | crankshaft gear | PC 只 | 2 |
2013/2101 | longrod conjunction | SET 套 | 2 |
2113 | sector gear arm(left/right) | PC 只 | both 2 |
2115 | sector gear | PC 支 | both 2 |
2118 | eccentric collar | PC 只 | 2 |
26OO-1 | belt tube | PC 支 | 2 |
26O1/2 | weft guider(left/right) | SET 套 | both 2 |
2628 | releasing cam | PC 块 | 4 |
29151 | bridging over nylon gear | SET 套 | 1 |
3101/3115 | crankshaft conjunction(left/right) | PC 套 | 1 |
2904 | cutter shaft | PC 支 | 2 |
29119/29120 | eccentric sliding block | PC 只 | 4 |
74OO-1 | side support gear | PC 支 | 2 |
74OO-7/8 | stationary cutter conjunction(left/right) | PC 只 | both 2 |
29OO-24 | under cutter conjunction | PC 只 | 2 |
29OO-25 | upper cutter conjunction | PC 只 | 2 |
7406 | support backet | PC 只 | 4 |
74II/I2 | fabric support bracket | PC 只 | 4 |
droppin strip | PC 根 | 2 | |
26126 | tape wheel | PC 只 | 4 |
O132 | frame guiding plate | PC 块 | 4 |
rapier gripper box(left/right) | PC 只 | both 1 | |
electric control box sensor | PC 只 | 1 | |
weft yarn detector | PC 只 | 1 | |
electric control box main board | PC 块 | 1 | |
2600-2/3/4/5 | guider | PC 片 | all 30 pcs |
2111 | short linking lever | PC 只 | 1 |
tool box | SET 套 | 1 | |
gripper,rapier belt | SET 套 | 1 |
We also supply all types of spare parts for Crank Rapier Looms on advance order.
