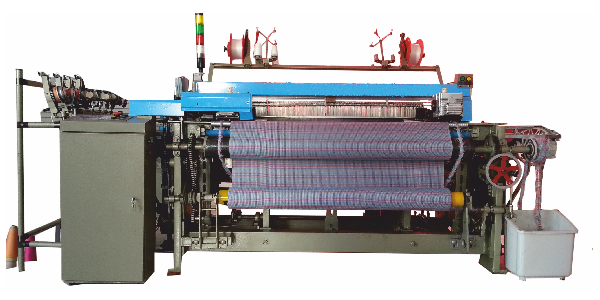

Tappet with Tucking Rapier with Lower Motion Loom
- Reed width: 55 inch to 90 inch. (55 inch loom machine size is 9.5ft x 5.5ft)
- In 55 inch model, side wall board is of steel board and not of iron casting.
- Mechanical take up & let off is in-built.
- Machine working speed is 200rpm with tucking device.
- Main motor power is 0.8Kw.
- Machine with tappet for 2 pcs heald frame, each double heald frame can put 3 lines heald wire.
- Mechanical colour selector, 2 colours. You may select up to 6 colours with Electronic Colour Selector.
- Small feeder 2 pcs saves space by fixing feeder directly on the Loom.
- Warp beam pipe is applicable in both normal Warping Machine as well as Sizing Machine.
Technical Parameter
Tappet with Tucking Rapier with Lower Motion Loom Features |
|||
|---|---|---|---|
| WIDTH | 140cm, 150cm, 190cm | TYPE | TAPPET LOOM |
| MOTOR | 0.8 KW | WEIGHT | 800 KG - 900 KG |
| SELECTOR | 2 COLOUR MECHANICAL SELECTOR | FEEDER | 2 SMALL |
| CLOTH ROLLER | 2 PCS | GRIPPER & BELT | 1 SETS |
| DROPPER | 5000 PCS (0.3mm*165mm) | BEAM | 2 SETS |
| HEALD WIRES | 5000 PCS | FRAMS | 2 FRAMES (EACH WORK LIKE 3) |
| BEAM PLATE | 500 - 600mm | CONTROL BOX | HAVE LCD |
We also supply all types of spare parts for Tappet with Tucking Rapier with Lower Motion Looms.
 |
 |
|

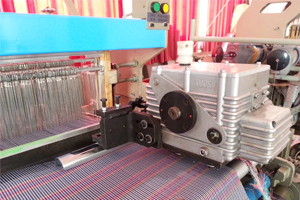

Tucking Device |
Packed Border | |
 |
 |
|

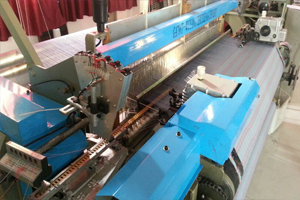

Compact Size Machine |

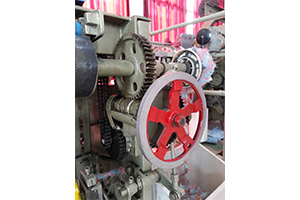

Take-Up Device |
|
 |
 |
|

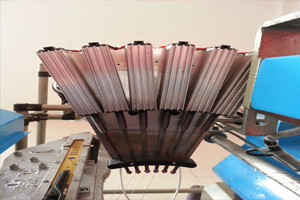

6 - Color Weft Electronic Color Selector |

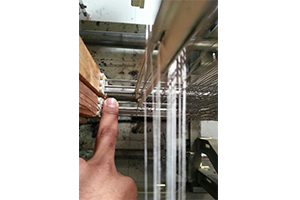

6 - Lined Healed Wires in 2 Healed Frames | |
 |
 |
|

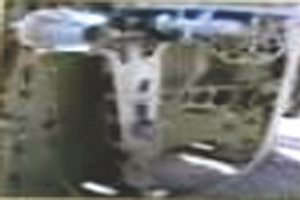

Powerful Beat Up |

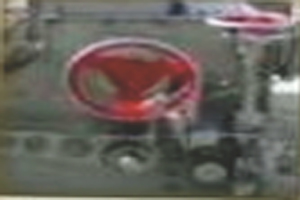

Convenient Let-Up |
|
 |
||

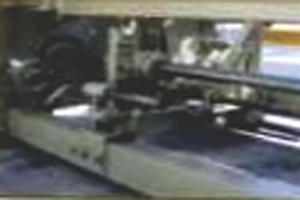

Sturdy Bottom Support |
We also supply all types of spare parts for Tappet with Tucking Rapier with Lower Motion Loom on advance order.
