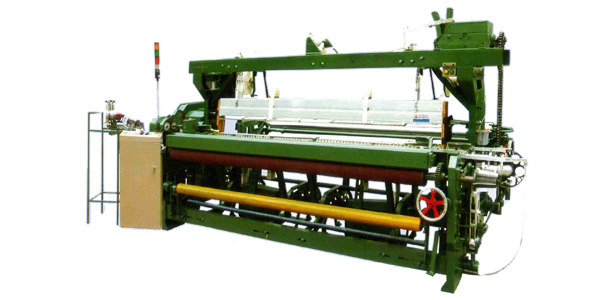

Tappet with Tucking Rapier with Upper Motion Loom
It has 2 to 4 colours weft selection, exchanging colour per weft. It's speed increases very much than the shuttle loom, this machine is improved on the basis of the use tappet loom instead of dobby and the tappet loom motion is for good stability, easy to operate, convenient to maintainance and high feature price ratio. This machine is speacially of plane fabric with cotton as well as synthetics.
Technical Parameter
| PARTICULARS | MAIN SPECIFICATION |
|---|---|
| Working width(cm) | 150 180 190 200 230 250 280 330 360 390 430 |
| Speed (R.P.M) | 200-140 |
| Weft selection | 2 to 4 Colors (mechanical or electrical) |
| Yarn count | Cotton 7-60Ne Wool 12-100Nm Chemical fabric 100-650D |
| Dia.of warp beam (mm) | 600 - 800 |
| Dia.of rolling-up (mm) | 400 |
| Heddle frame (pcs) | 4 - 8 |
| Electrical Control | Micro-computer |
| Motor power(kw) | 1 - 1.5 kw |
| Weight(kg) | 1200 - 2000 kg |
We also supply all types of spare parts for Tappet with Tucking Rapier with Upper Motion Looms on advance order.

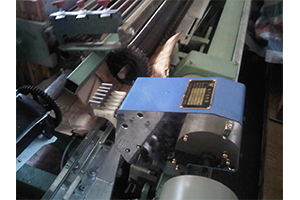

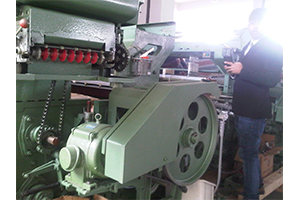

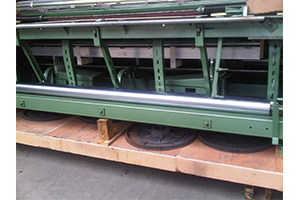

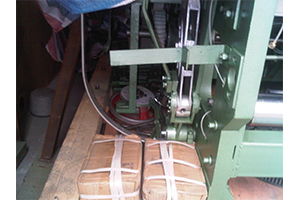

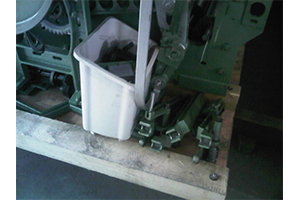

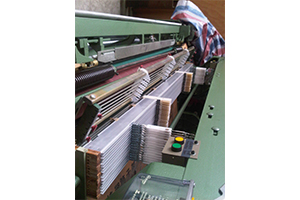

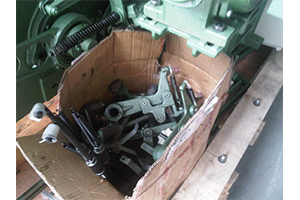

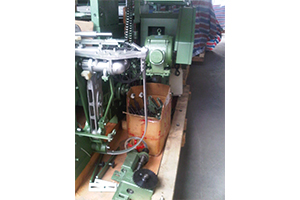

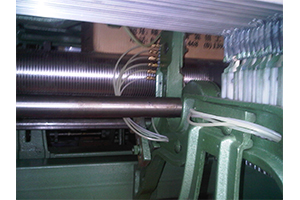

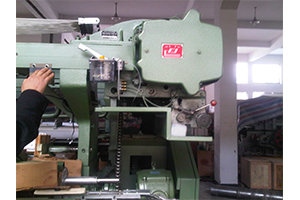

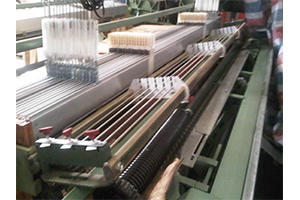

Inspection - Speacial Packaging
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
